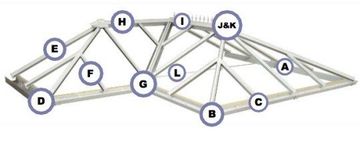

A) Eaves Beam -
Incorporates a box section design for maximum strength and thermal efficiency. Available in either a fixed or variable pitch between 2.5 ÌŠ and 45 ÌŠ.
B) Guttering -
The gutter sits in front of eaves beam reducing any risk of overflow leakage and avoiding the need for having to fit special down pipe connectors.
C) Rafter End Assembly - Simple and neat clip up and over rafter bar end caps incorporate glazing stops for all roof designs.
D. Box gutter - Silicone and tape-free box gutter adaptors for all weather installations. They are cut square to the external face of the frames below, rather than mitred over them minimising any risk of internal leakage.

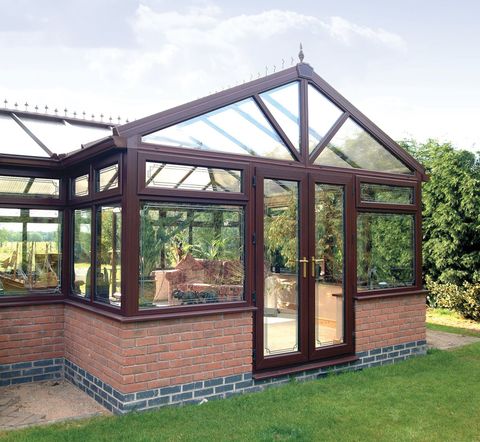

E. Gable-end rafters - Gable end bars for fixing to house walls are supplied with a patented built-in soaker system.
F. Jack rafters - Adjustable fixing blocks link the hip bar to the jack rafter providing installation flexibility to ensure fast and neat watertight rafter connections.
G. Valley assembly - Fully adjustable and linked valley wing system accommodates all pitch combinations while providing strong and effective watertight installations.
H. Wall plate - Variable angle wall plate capable of pitches between 2.5 ÌŠ and 45 ÌŠ, and glazing in either 25mm or 32mm polycarbonate and 24mm glass.
I. Ridge top capping - Ridge top capping can be fixed into place before final glazing, providing easy access for sealing and lead work. Fully foiled ridge top capping for all woodgrain finishes to ensure consistent aesthetics.
J&K. Finials and crestings - Moulded PVC-U or aluminium finials and crestings provide long-term visual appeal.
L. Tie bars - When necessary, tie bars directly attach to the underside of the ridge - requiring no pre-preperation to the ridge under cladding.
